Narrow Belt Sorter

-Introduction of narrow belt sorter:

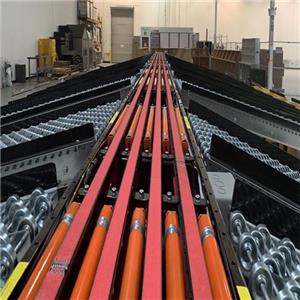

The narrow belt sorter is a kind of belt conveyor which is composed of multiple narrow belts distributed at equal intervals. The lifting rollers and oblique wheels are embedded under the narrow belt interval. The rollers and oblique wheels are set lower than conveyor belt of flexible sorting machine when objects are straightly transported. On the other hand, the narrow belt sorter’s rollers and oblique wheels will raise the position that is higher than the belt when the objects are transported to a predetermined position for sorting. The rollers beneath the surface of fragile sorting machine belt can divert the product at a 30 or 90 degree angle, sometimes 45 degree but not commonly used. The modular design of this e-commerce sorting equipment boast the high sorting rates while utilizes less space than other sortation equipment. The narrow belt sorter is mostly used around the area of cross belt sorter. It is suitable for direction changing of transmission and modular expansion. The narrow belt sorter is widely used in modern logistics distribution centers such as medical distribution, book sorting, audio and visual products sorting.

We produce the narrow belt sorter which adopts the PVC for low-friction belt with hot-melt interface. The middle bracket of e-commerce sorting equipment adopts the form of groove which is convenient for installation and disassembly of the fragile sorting belt. The narrow belts are automatically tensioned by independent cylinders. The tensioning force is adjusted by the filter pressure relief valve. The cylinder is equipped with a one-way valve that can hold the air pressure to avoid the risk of loosening of the belt after air-off or the situation of off-tracking for the belt. Therefore, this narrow belt sorter is greatly suitable for fragile parcel sorting. This fragile sorting equipment has stable and high lifting efficiency that adopts pneumatic device and fast exhaust valve. For the surface of flexible sorting equipment, all the parts have passed rust removal process by steel wire brushes and sandpaper.

-Advantages of narrow belt sorter:

1.The narrow belt sorter has several narrow belts instead of one wide belt, the belts are running in a track which can eliminate the drive mechanisms at divert points.

2.The flexible sorting equipment has minimal belt snubbing at 30 degree divert points.

3.No product-to-roller noise at any divert point contribute to fragile parcel sorting quiet that the actual sound pressure measurements are 75% less than those for conventional sorters.

4.The pneumatics of this e-commerce sorting equipment consume a very small quantity of air that save the energy consumption of at least 60% compared with other kinds of sorters.

5.The narrow belt sorter requires shorter installation time that has large number of pre-assembled components, no requirement for belt tracking, easy repositioning of transfers and simple modular construction.

 6.The frame of flexible sorting machine adopts hot-rolled steel plate Q235/T4 and ultra-high molecular polyethylene for the material of belt that keep the fragile parcel sorting running effectively, smoothly and safely.

7.This e-commerce sorting equipment diverts experience less tipping and skewing of product and more accurate diverting characteristics than other kinds of sorters.

-Parameters of narrow belt sorter:

-Use of narrow belt sorter:

The e-commerce sorting is designed to transfer small to medium-size items such as boxes, cartons, totes, etc. The narrow belt sorter is perfectly suitable for the transmission of fragile parcel, flat express sorting, electronic product sorting and clothing industry, etc.
